隔熱玻璃（Heat-absorbing Glass）GRB1 GRB3
隔熱玻璃特性（Heat Absorbing Glass Characteristic）
|
牌號 Type |
厚度 Thickness (mm) |
A[2856K] | D65 |
化學穩(wěn)定性 Chemical Stability |
ND |
α×10-7 (/℃) |
Tg (℃) |
Ts (℃) |
S | |||||
| x | y | Y | x | y | Y | DA | DW | |||||||
| GRB1 | 3 | 0.439 | 0.412 | 91.7 | 0.307 | 0.330 | 90.8 | 3 | 2 | 1.510 | 59 | 587 | 656 | 2.54 |
| GRB3 | 2 | 0.440 | 0.413 | 86.5 | 0.311 | 0.334 | 87.4 | 2 | 2 | 1.512 | 59 | 587 | 656 | 2.55 |
技術(shù)要求(Technical Indexes)
|
牌 號 Type |
厚 度 Thickness (mm) |
420 (nm) |
500 (nm) |
600 (nm) |
700 (nm) |
800 (nm) |
900 (nm) |
1000 (nm) |
1060 (nm) |
2200 (nm) |
| GRB1 | 3 | ≥85.0 | 45.0～70.0 | ≤4.0 | ||||||
| GRB3 | 2 |
365 ≥81.9 |
≥81.0 | ≥76.4 | ≤50.6 | ≤12.9 | ≤2.8 | ≤0.1 | ≤0.9 |
汽泡、條紋、應(yīng)力類級別(Class Of Bubble Stripe Stress)
|
牌 號 Type |
氣 泡 Bubble |
條 紋 Stripe |
應(yīng) 力 Stress |
| GRB1 | C | 3C | 4 |
| GRB3 | D-C | 3C | 4 |

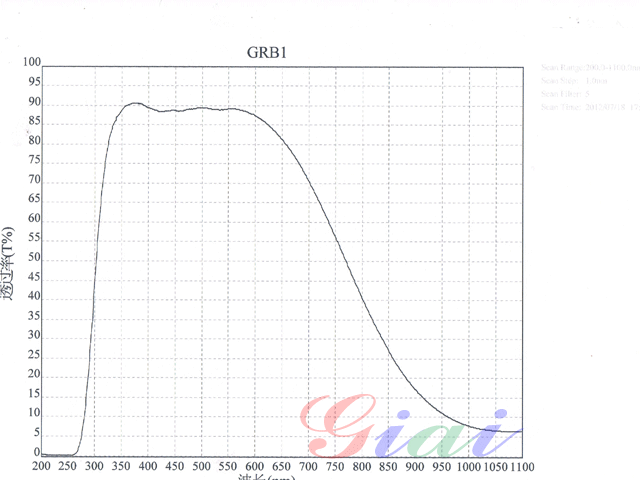

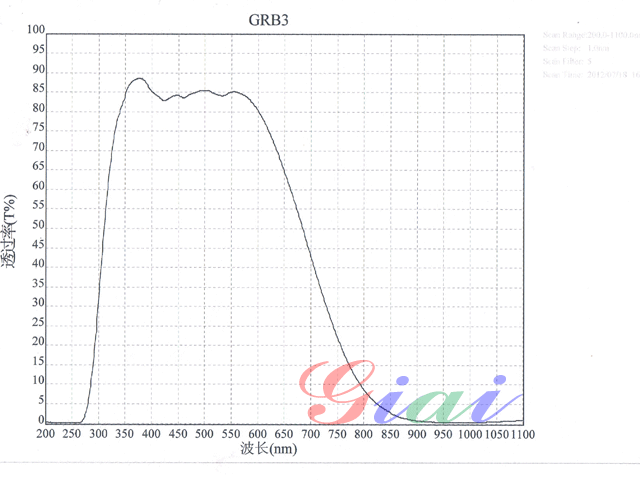

特性曲線圖(Wavelength)
